Buying Surplus Seats
made easy

O230590 Haeco | B2054DV

Print
Share

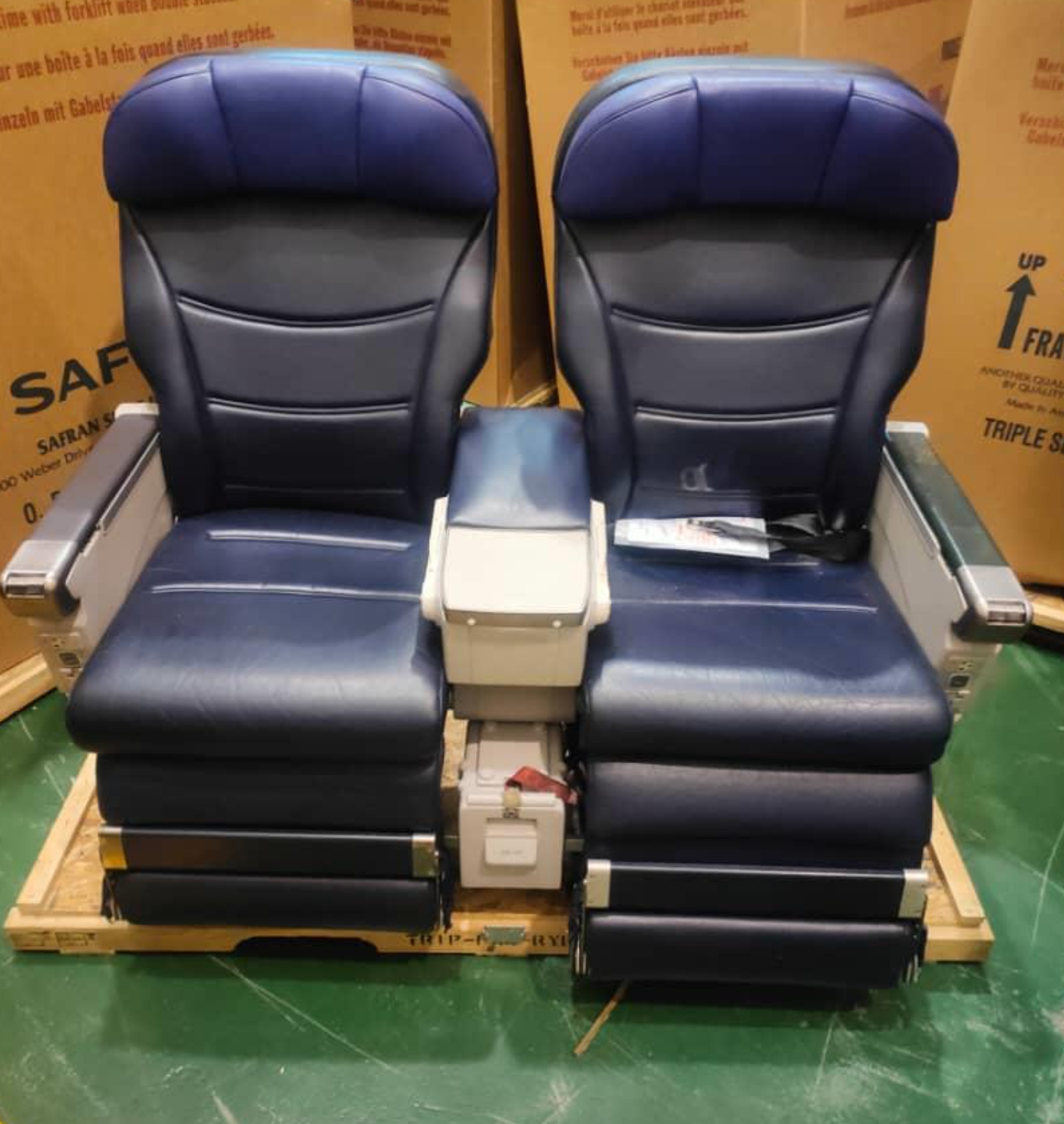

o230590_aircraft-seats_boeing-737-family_haeco_b2054dv-main
  • Description |

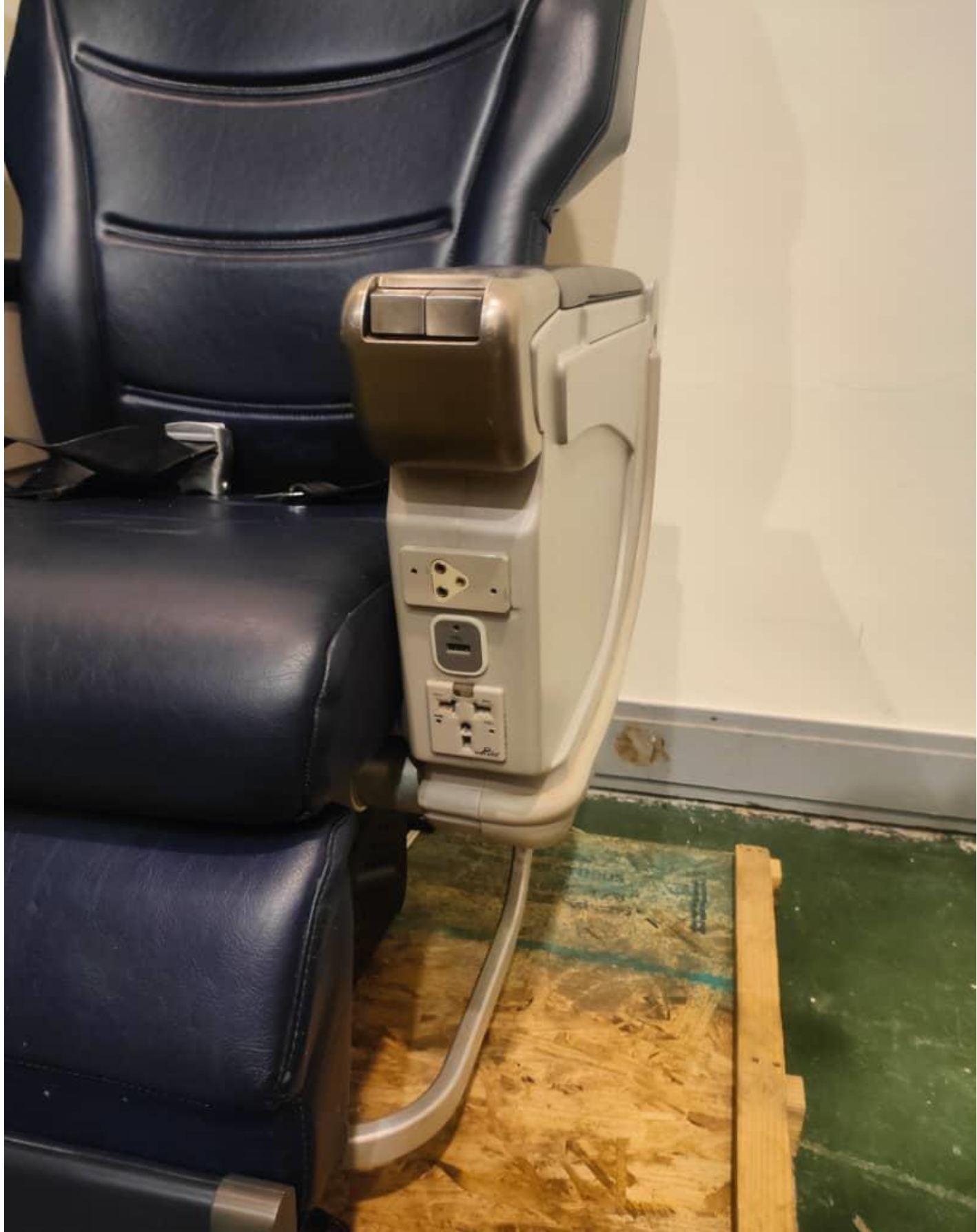

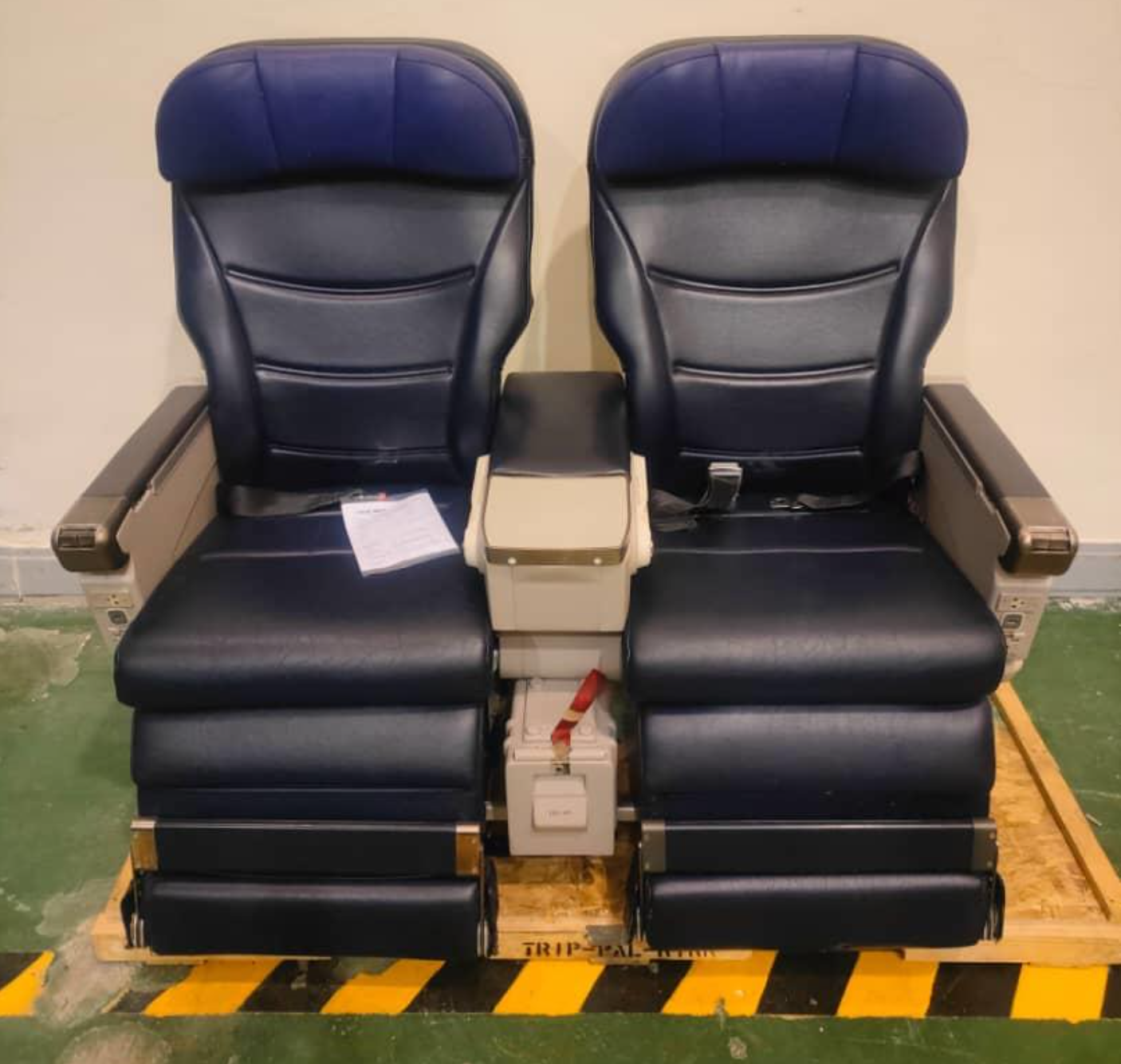

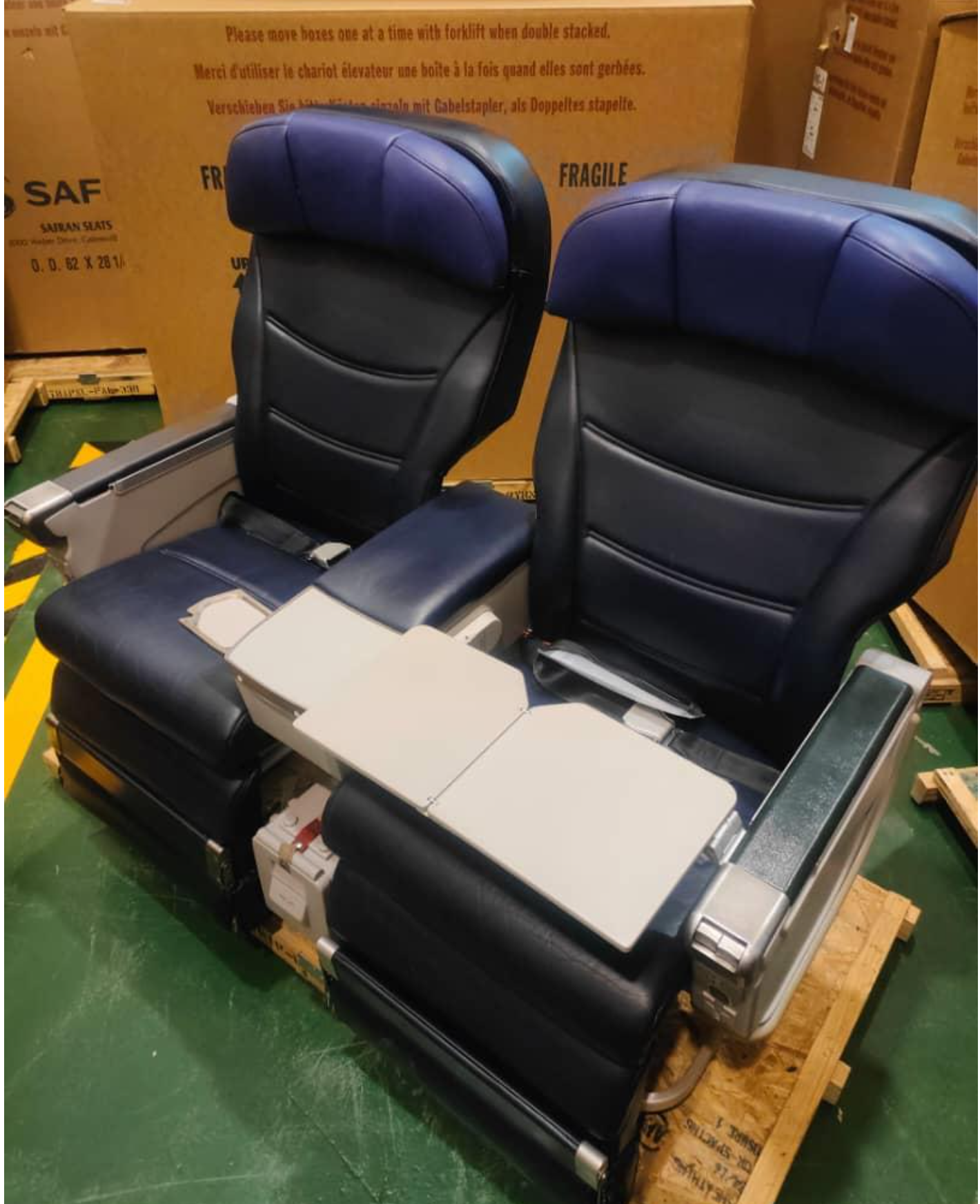

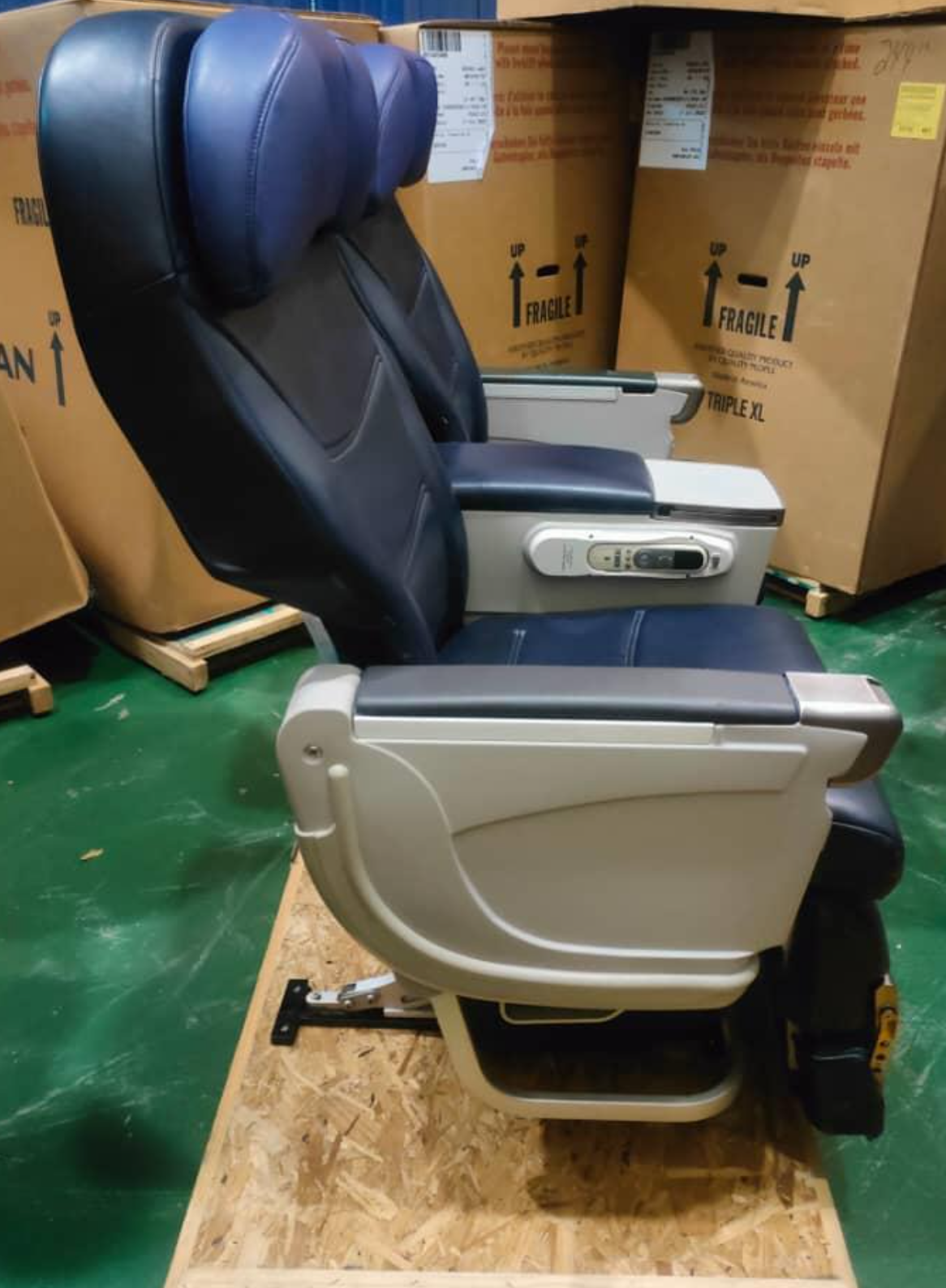

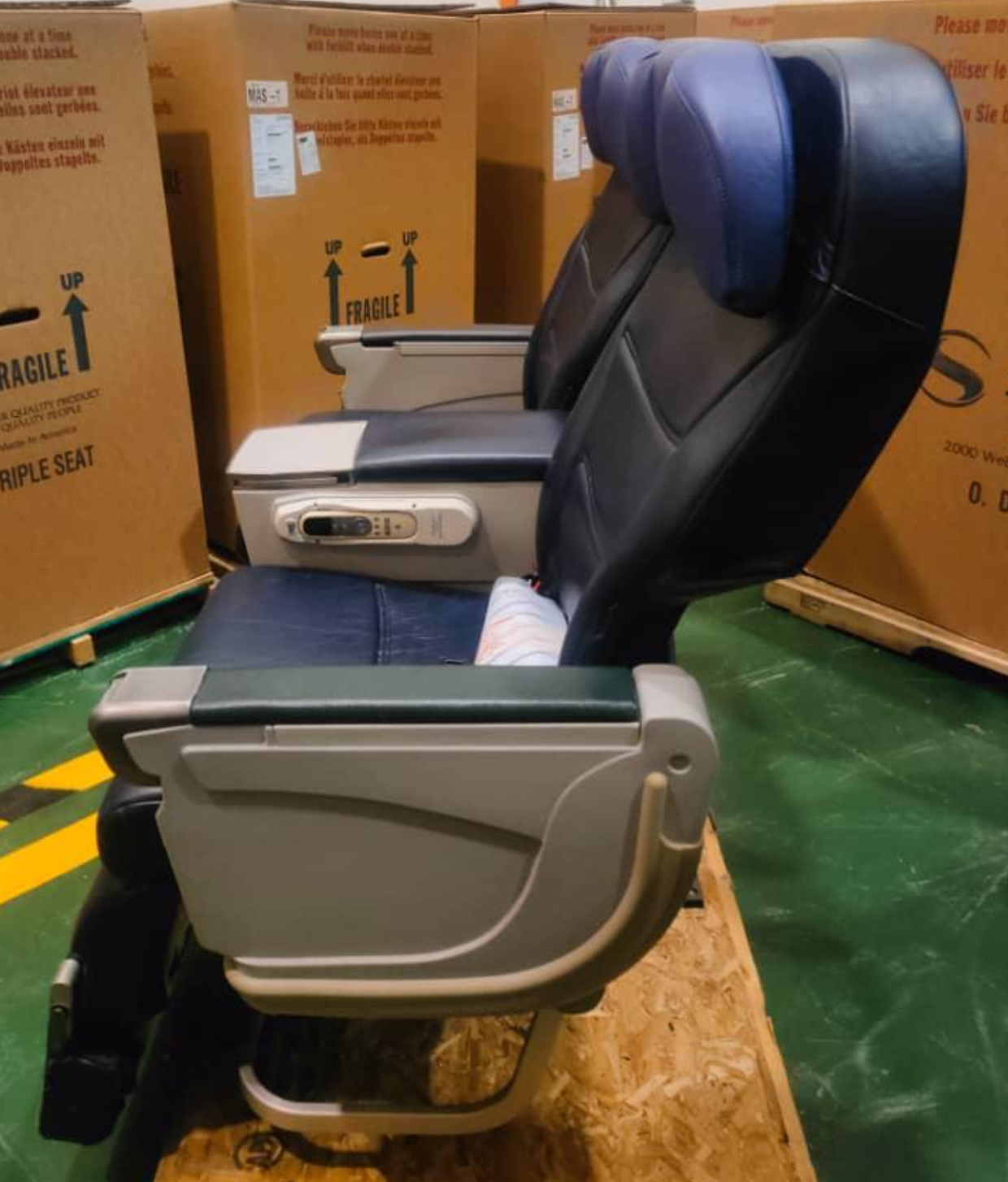

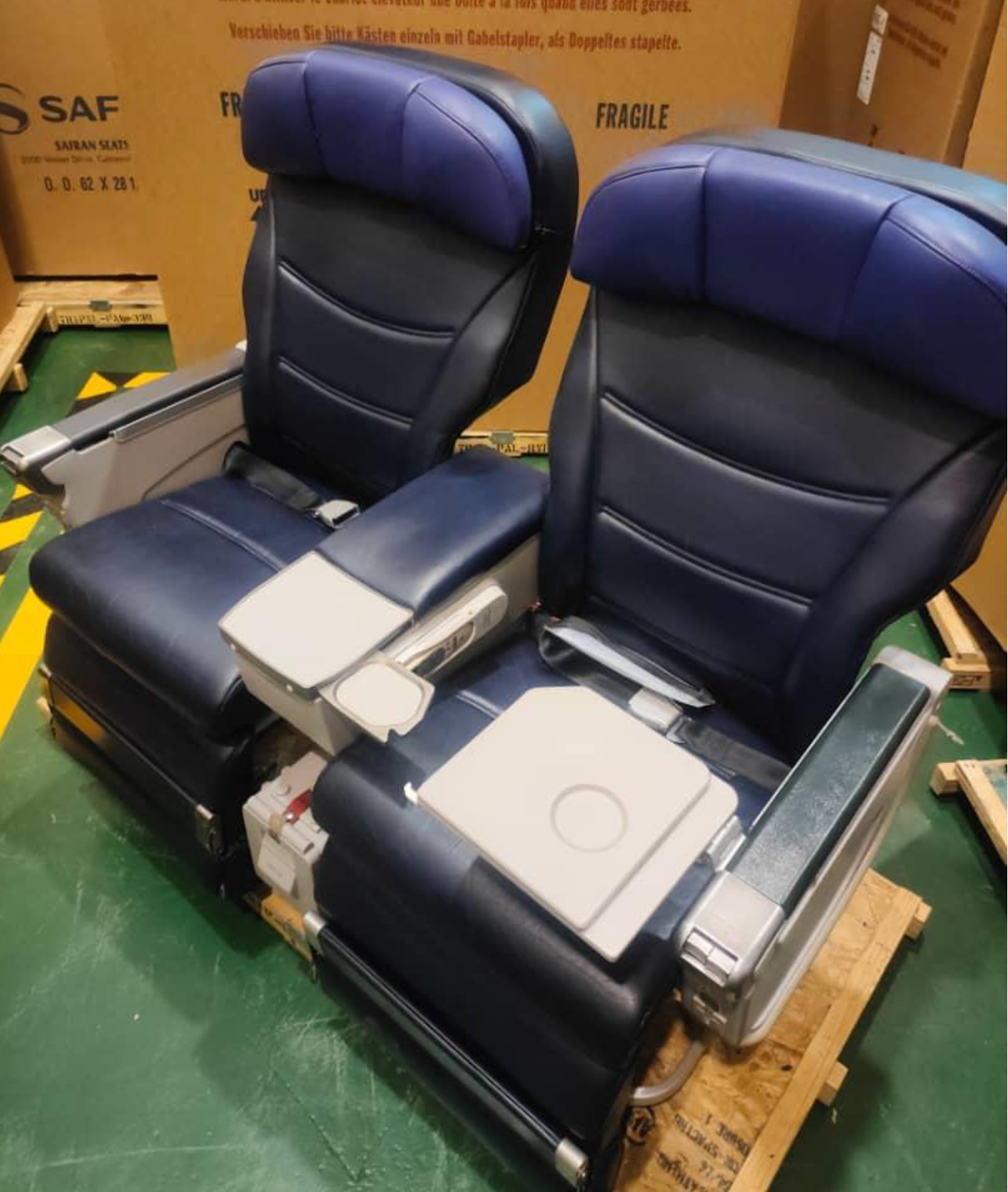

    For sale: Business Class seats for Boeing 737 Family, manufactured by Haeco (Model: B2054DV). Featuring extended recline, leg rests, and comprehensive connectivity options including PC power, USB power, In-Seat Power Supply (ISPS), these seats redefine comfort. Seats come in 'as removed' condition or opt for inspection, repair, or replacement (IRAN) per CMM standards. Located in Asia, each shipset includes 16 passenger places, totaling 64 seats across 4 shipsets. Lead time is about 180 days.

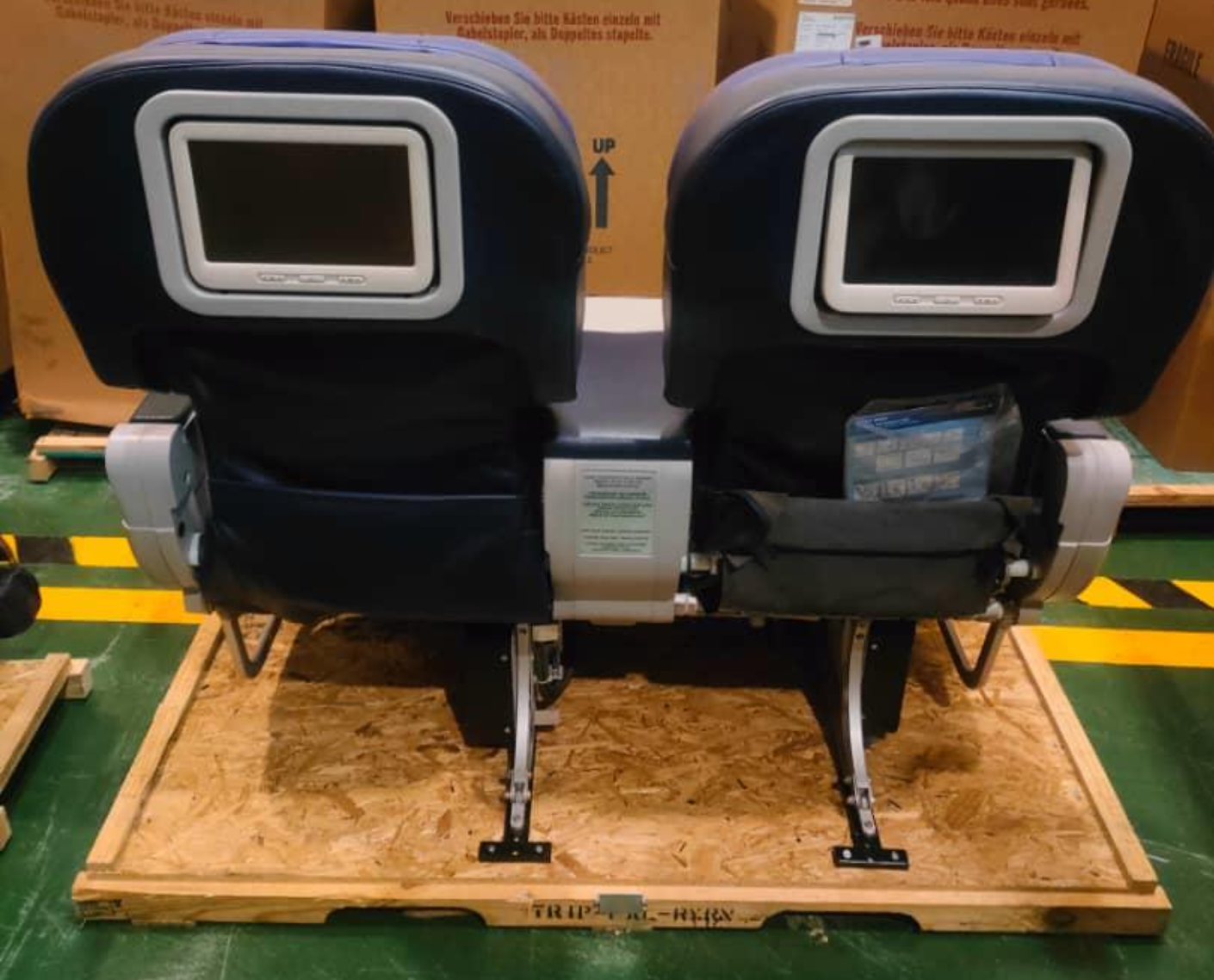

    Select between seats with or without the Panasonic In-Flight Entertainment (IFE) system tailored to your flight needs. Our certified solutions guarantee compliant removal and blanking of the monitor, providing you with confidence in customizing your upgrade.



    Part numbers per Shipset 16 PAX |

    70823-401-003A

    70823-402-003A

    70823-403-003A

    70823-404-003A

    70823-405-003A

    70823-406-003A

    70823-407-003A

    70823-408-003A


    In Seat IFE and ISPS |

    RD-FE7800-64
    		SDU 10.6 IN., SEAT BACK
    		12
    RD-FE7805-65
    		SDU 10.6 IN., IN ARM
    		4
    RD-FA3621-01
    		SPM 250W
    		8
    1303-7-2
    		OUTLET UNIT, AC
    		16
    RD-FA6013-02
    		USB, SINGLE MODULE
    		16
    RD-FA3124-02
    		DC-SEB
    		6
    RD-FA3524-11
    		DC-SEB/ZT (ZONE TERMINATOR)
    		2
    RD-FA5001-34
    		HANDSET
    		16
    RD-KA5611-17
    		CRADLE
    		16
    RD-NA1010-18
    		RJU MODULE
    		16


  • Aircraft Type |
    Boeing 737 Family
  • Seat Manufacturer | Haeco
  • Seat Model | B2054DV
  • Seat Type |
    Business Class
  • Seat Condition |
    As Removed
  • Seat Layout |
    4 abreast
  • Seat TSO |
    TSO-C127a (16G)
  • Year of Manufacturing |
    2010
  • Seat Weight per Pax | 45 kg
  • Connectivity |
    PC Power,USB Power,Video
  • IFE |
    Panasonic
  • HIC compliant |
    Review pending
  • Recline |
    Mechanical
  • Comfort |

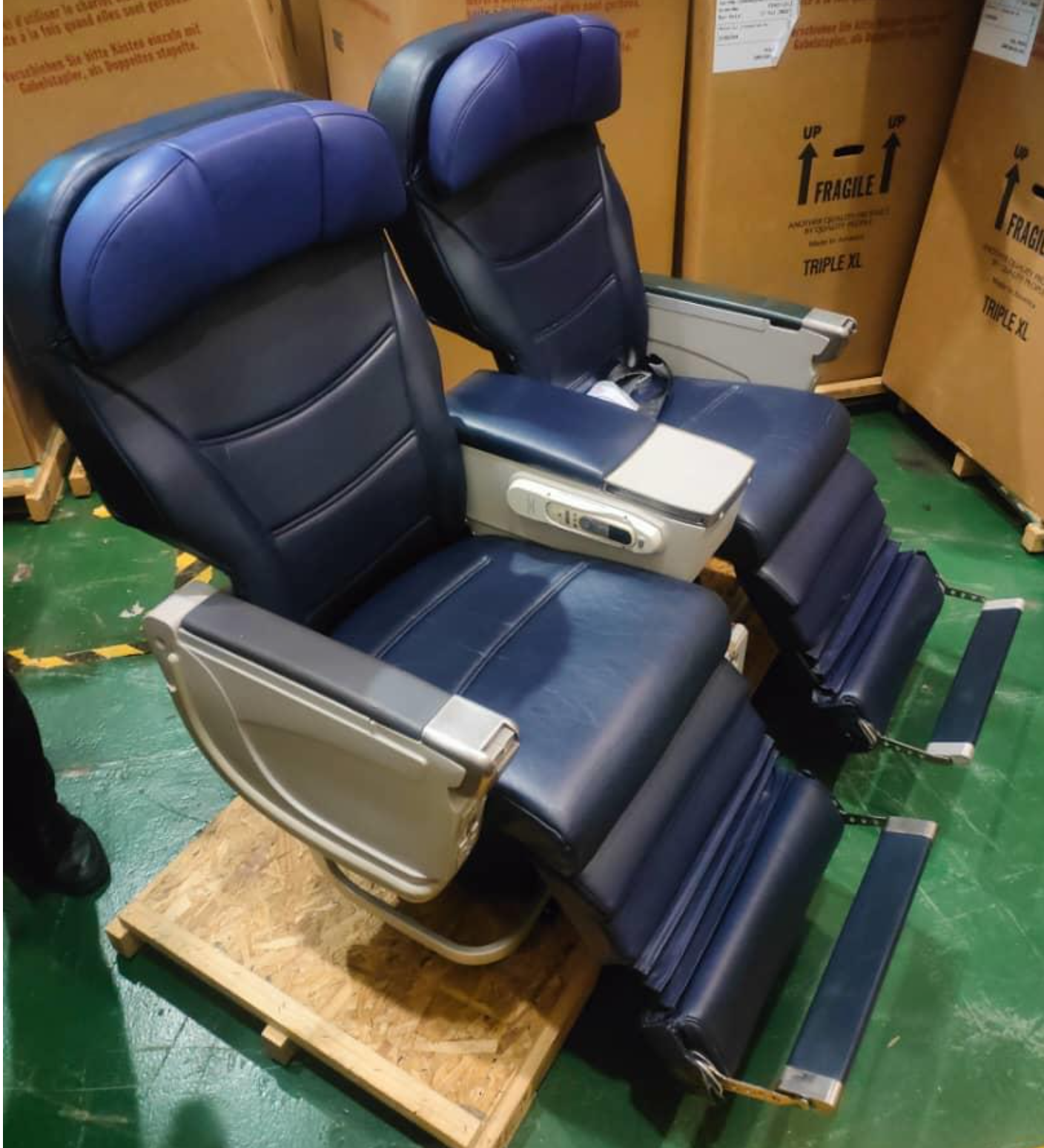

    Leg Rest
  • Options Available |
    IRAN (inspect, repair/replace as necessary) i.a.w. CMM,Mockup
  • Available Shipsets | 4
  • Passenger Places | 16
  • Total PAX | 64
  • Lead Time | 180 days
  • Location |
    Asia
REQUEST FOR QUOTE

Request for quote at:
aviationscouts GmbH
Wendenstr. 40
96215 Lichtenfels, Germany
Phone: + 49 (0)9571 947 907 0
E-Mail:
